Exhibition Introduction of CBB 2020

Read 2953 times

The 14th International Brew & Beverage Processing Technology

and Equipment Exhibition for China（CBB 2020）

About Us

Speciality Comprehensive food equipment and engineering services

Mission Expertise in Food Industry

Target Build a modern and intelligent food factory with pharmaceutical concept and standard，

to promote the development of great health

Exhibition Hightlight

Mutifunctional pipe-in-pipe sterilizer

Adopt pipe-in-pine circulation structure, with steam, hot water and cold water as heat exchange medium, and can be used for continuous sterilization of materials with high solid content and high viscosity, and large particle content (≤ 70%)， such as fruit and vegetable clear juice, puree, concentrated juice, fruit jam, honey, syrup, popping boba, pulp, fruit grain, etc.

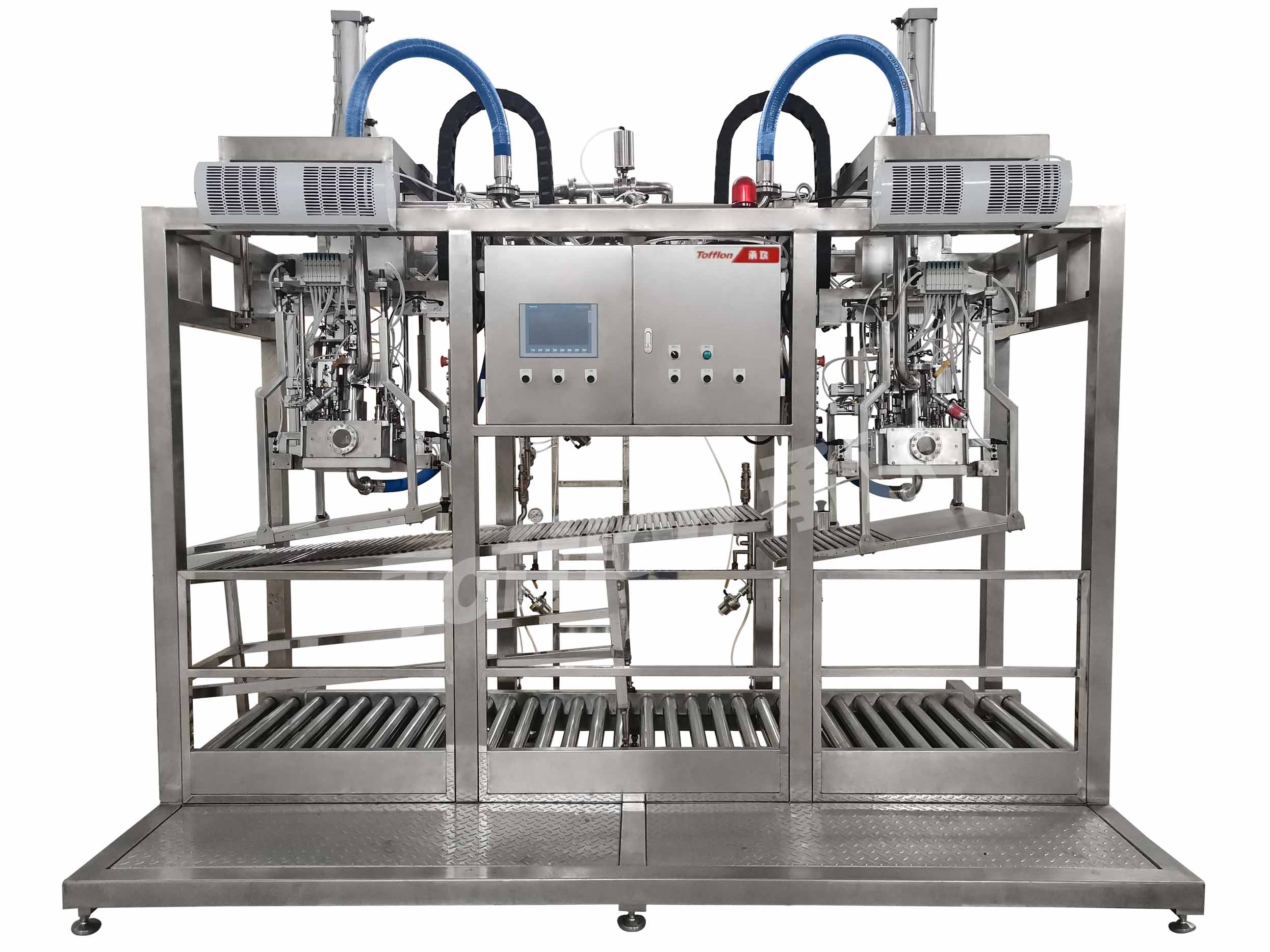

Aseptic large bag filling machine

The aseptic large bag filling system integrated pre-sterilization, filling and cleaning, and can realize filling with various capacities of 5-220kg. According to customer needs, it can be designed as multiple filling heads or ton bags/ ton boxes and other filling forms, which can fill different capacity packaging containers at the same time, and is compatible with BIB packaging. It is suitable for aseptic filling of various products suah as fruit and vegetable juice, puree, fruit particles, jam, herbal tea, dairy products, etc.

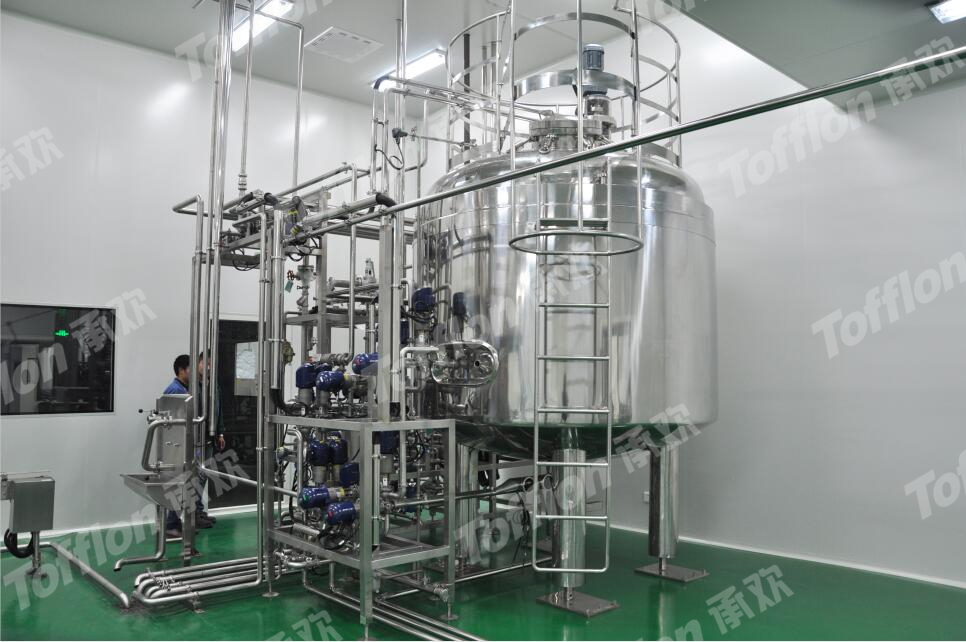

Aseptic tank system

Aseptic tank system is mainly composed of tank body, valve group, CIP system and PLC system, is made of high quality SUS 304 with jacket structure, the max working pressure is 0.3 MPa, vacuun resistance. It is applied in aseptic production line, is a buffer tank and storage tank to receive all UHT sterilization liquid aseptic products.
